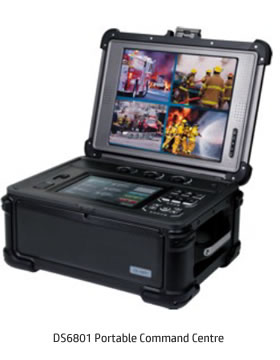

DS 6801 Portable Emergency Response Control Centre

• Quick Deployment
• Flexible Video-Capture
• NLOS Transmission Technology
• High Integrated Video Functions
• Powerful Voice Dispatching
• Compact design, light weight, small size, easy for carry and deployment.
• Built-in MIC, touch screen operation, easy to use.
• Integrated with high-definition, highlight and wide temperature display,
• can be used in tough environment
• Video receiver for Wireless Cameras (VS5700)

This system will be used in field deployments. It acts as local repeater for voice communication; with a capacity to patch GSM call to radio users and vice versa. The DS6801 can be linked to the Head Office through a Satellite or 3G link. The Data transmitted to the Headquarter are encrypted to avoid 3rd party interception into transmitted information.

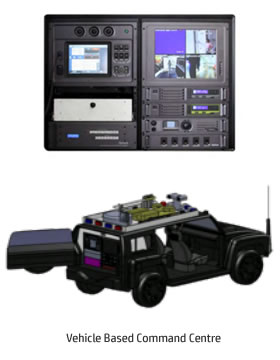

For longer distances, we also have the vehicle based command centre that can be equipped with a telescopic mast for a larger communication range. This command centre consists of

• Toyota Land cruiser or equivalent 4X4 vehicle
• Mobile Control & Command solution installed
• Diverse antenna systems for communications
• 360 Degree PTZ camera
• Telescopic mast
• Portable V-sat system (optional)

The Vehicle has a 360-degree PTZ camera mounted on the rooftop, and up to 4 wireless cameras mounted on man-packs connected to the system. In this setup, the system can have live video coverage within a range of up to 5km none line of sight.

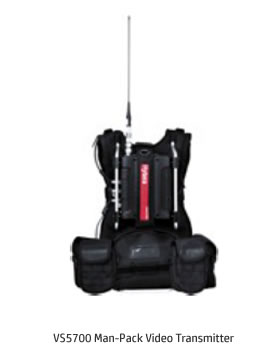

VS5700 Man Pack Video Transmitter

The man-pack VS-5700 is a portable video transmission system. It consists of a Video transmitter and battery system in an easy to carry jacket. This directly transmits video signals to the mobile control centre within the range of 2km, and with a repeater installed, it transmits video signals to the mobile control centre within a 5km range. The cameras used can be Day/Night cameras.

Drone Solution with DS6801

The figure below shows the logical architecture of the solution. The ground station and console of the drone are deployed with DS-6801 in the operation room. The drone captures related video and transmits the video to the console. With wired connection, the video can be displayed on the external display connected to DS6801. Moreover, information can be Figure 5: Vehicle based command center Figure 6: VS5700 man-pack video transmitter Page 15 of 25 Communication Solution transmitted to headquarter via DS6801 as it can be connected to VSAT and it has built-in 3G module.

Features Available of Drone System:

• Manual control
• Real-time video monitoring
• Onboard camera control/ setup
• Servo Inspection
• Onboard Gimbal Setup to control camera shooting and camera angle
• Real-time display of aircraft pose
• Coordinates velocity and angle
• Battery power
• Autonomous Take-off and Landing
• Flight Path Planning
• Auto-cruising
• Auto-return
• Payload Options include Thermal Camera, Low-light Camera, PA Speaker, Radio Repeater, etc.
• Shortcuts keys like one-key shooting, one-key hover, one-key return, one-key take-off, onekey landing, one-key auto-cruising
• Warning-tone for aircraft low battery
• Remote Control low battery
• Automatic flight path
• Operator of ground control station can set up Flight height, Flight waypoints, Staying time length and Cruising speed.
• The ground control station also possesses the ability of Location Positioning on 3D Map as well as comprehensive Information Processing Power.

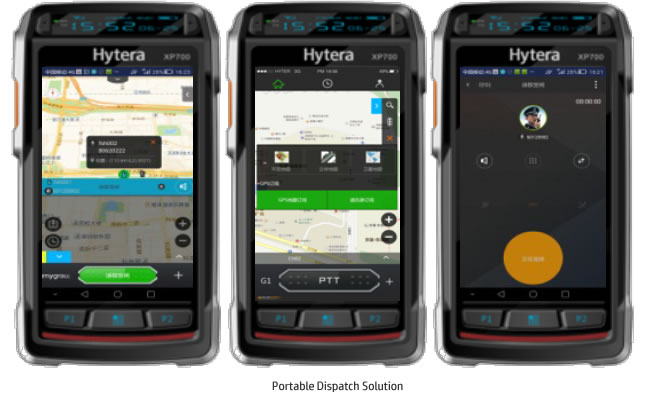

Portable Dispatch system

Hytera SmartOne Dispatch, which is designed for Android-powered devices, is a professional digital dispatch system that supports various kinds of trunking systems, including TETRA, DMR, and DMR conventional. This system allows you to perform rich dispatch operations, such as initiating emergency calls, performing ambient listening, or monitoring groups, on your portable devices anytime anywhere. SmartOne Dispatch provides a most effective and Page 17 of 25 Communication Solution convenient way for dispatch work for many industries and professional organizations, like manufacturing, energy, public security, transport, and military.

The Application uses any form of IP network to connect to the SmartOne gateway. Section
